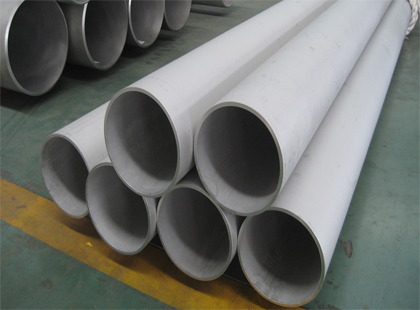

We at Apple Metals are maker, exporter and supplier of a subjective scope of Hastelloy C276 Welded Pipes in Mumbai, India, that are being outlined . AInconel C-276 is a nickel-molybdenum-chromium alloy with excellent corrosion resistance in severe environments. Inconel C-276 is used in pollution control, chemical processing, pulp and paper production, and waste treatment.
Hastelloy C276 Welded Pipes is used as a piece of a variety of circumstances from fairly oxidizing to strong diminishing conditions. At that point, our Hastelloy C276 werkstoff Nr. 2.4819 Welded Pipes Manufacturer are available in different sizes, specific and thickness as per the clients' revamped necessities. Joined Stainless LLP moreover offer the same in exceptionally sensible rates to our imperative customers.
SPECIFICATION :
| Standard | ASTM, ASME B 622, B 619, B 775, B 516, B 626 |
| Grade | Hastelloy C276 Welded Pipes and Tubes : ASTM B 619, B 626, ASME SB 619, SB 626 |
| Length | Single Random, Double Ranidom & Cut Length |
| Size : | 1/8" NB to 72" NB & 1mm OD to 1500mm OD |
| Thickness: | 0.3mm to 100mm, SCH 5, SCH 10, SCH 20, SCH 30, SCH 40,SCH STD, SCH 60, SCH 80,SCH XS, SCH 100, SCH 120 SCH 140 SCH 160,SCH XXS. | Types : | Seamless, Welded, ERW, Boiler tubes, Capillary, Fabricated, Corrugated, Conduit & Large Diameter Pipes. |
| Form : | Round pipes/tubes, Square pipes/tubes, Rectangle pipes/tubes, Coiled tubes, Hydraulic tubes, Ep pipes/ tubes, etc. |
| End : | Plain end, Beveled end, Threaded end & Conduit |
GRADE SPECIFICATION :
| Hastelloy | Tradename | UNS no. | Werkstoff No. |
| C276 | Hastelloy C276 | N10276 | 2.4819 |
CHEMICAL COMPOSITION :
| Element | Min | Max |
|---|---|---|
| Molybdenum | 15.0 | 17.0 |
| Chromium | 14.5 | 16.5 |
| Iron | 4.0 | 7.0 |
| Tungsten | 3.0 | 4.5 |
| Cobalt | -- | 2.50 |
| Manganese | -- | 2.5 |
| Carbon | -- | 1.0 |
| Vanadium | -- | .01 |
| Phosphorus | -- | 35 max |
| Sulfur | -- | .04 max |
| Silicon | -- | .03 max |
| Sulfur | -- | .08 max |
MECHANICAL PROPERTIES :
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
|---|---|---|---|
| Bar | 110.0 | 52.6 | 62 |
| Plate | 107.4 | 50.3 | 67 |
| Sheet | 115.5 | 54.6 | 60 |
| Tube & Pipe | 105.4 | 45.4 | 70 |
PHYSICAL PROPERTIES :
| Physical Property | Temp., °F | British Units | Temp., °C | Metric Units |
|---|---|---|---|---|
| Density | 72 | 0.321 lb/in.3 | 22 | 8.89 g/cm.3 |
| Melting Range | 2415-2500 | 1323-1371 | ||
| Electrical Resistivity | 75 | 51 microhm-in. | 24 | 1.30 microhm-m |
| Mean Coefficient of Thermal Expansion |
75-200 | 6.2 microinches/in.-°F | 24-93 | 11.2 x 10-6 m/m•K |
| 75-400 | 6.7 microinches/in.-°F | 24-204 | 12.0 x 10-6 m/m•K | |
| 75-600 | 7.1 microinches/in.-°F | 24-316 | 12.8 x 10-6 m/m•K | |
| 75-800 | 7.3 microinches/in.-°F | 24-427 | 13.2 x 10-6 m/m•K | |
| 75-1000 | 7.4 microinches/in.-°F | 24-538 | 13.4 x 10-6 m/m•K | |
| Thermal Conductivity | -270 | 50 Btu-in./ft.2 hr.-°F | -168 | 7.2 W/m•K |
| -100 | 60 Btu-in./ft.2 hr.-°F | -73 | 8.6 W/m•K | |
| 0 | 65 Btu-in./ft.2 hr.-°F | -18 | 9.4 W/m•K | |
| 100 | 71 Btu-in./ft.2 hr.-°F | 38 | 10.2 W/m•K | |
| 200 | 77 Btu-in./ft.2 hr.-°F | 93 | 11.1 W/m•K | |
| 400 | 90 Btu-in./ft.2 hr.-°F | 204 | 13.0 W/m•K | |
| 600 | 104 Btu-in./ft.2 hr.-°F | 316 | 15.0 W/m•K | |
| 800 | 117 Btu-in./ft.2 hr.-°F | 427 | 16.9 W/m•K | |
| 1000 | 132 Btu-in./ft.2 hr.-°F | 538 | 19.0 W/m•K | |
| Specific Heat (Calculated) |
Room | 0.102 Btu/lb.-°F | Room | 427 J/kg•K |
