2.4819 Hastelloy C276|Hastelloy C276| Hastelloy Alloy C276| Hastelloy Alloy C276 Weld Neck Flanges| Hastelloy Alloy C276 Blind Flange|Hastelloy Alloy C276 Flanges Supplier In India.
Hastelloy C276 N10276 Exporter|Hastelloy Alloy C276 Flanges|ASTM Hastelloy Alloy C276 Flanges|Hastelloy Alloy C276 ASME Flanges| Hastelloy Alloy C276 ANSI Flanges|Hastelloy Alloy C276 Flanges Manufacturer In India.

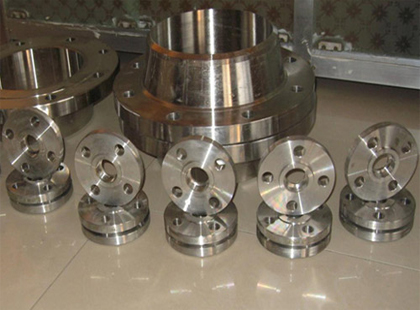

Apple Metals is considered one of the favored manufacturers, trader, exporters and supplier of Hastelloy C276 Flanges.The use of optimum quality materials in the manufacturing of the Flanges ensures high durability, tensile strength and resistivity to Highly Corrosive. Moreover, the Flanges are available in various sizes, material, dimensions and finishes meeting the specifications provided.
We offer the same in various sorts, for example, Hastelloy C276 Slip On Flanges, Hastelloy C276 Weld Neck Flanges, Hastelloy C276 Blind Flanges, Hastelloy C276 Socket Weld Flanges, Hastelloy C276 Orifice Flanges, Hastelloy C276 Ring Type Joint Flanges, and then some. Our offered Alloy C276 Flanges (WNR 2.4819)is being created and planned in agreement by method for the universal nature of guidelines at our framework office for to accomplish the most astounding sizes of value.
SPECIFICATION :
| Standards | ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
|---|---|
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Specifications | ASTM B564 / ASME SB564 |
| Size | 1/2” to 36” |
| Class | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
GRADE SPECIFICATION :
| Hastelloy | Tradename | UNS no. | Werkstoff No. |
| C276 | Hastelloy C276 | N10276 | 2.4819 |
CHEMICAL COMPOSITION :
| Element | Min | Max |
|---|---|---|
| Molybdenum | 15.0 | 17.0 |
| Chromium | 14.5 | 16.5 |
| Iron | 4.0 | 7.0 |
| Tungsten | 3.0 | 4.5 |
| Cobalt | -- | 2.50 |
| Manganese | -- | 2.5 |
| Carbon | -- | 1.0 |
| Vanadium | -- | .01 |
| Phosphorus | -- | 35 max |
| Sulfur | -- | .04 max |
| Silicon | -- | .03 max |
| Sulfur | -- | .08 max |
MECHANICAL PROPERTIES :
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
|---|---|---|---|
| Bar | 110.0 | 52.6 | 62 |
| Plate | 107.4 | 50.3 | 67 |
| Sheet | 115.5 | 54.6 | 60 |
| Tube & Pipe | 105.4 | 45.4 | 70 |
PHYSICAL PROPERTIES :
| Physical Property | Temp., °F | British Units | Temp., °C | Metric Units |
|---|---|---|---|---|
| Density | 72 | 0.321 lb/in.3 | 22 | 8.89 g/cm.3 |
| Melting Range | 2415-2500 | 1323-1371 | ||
| Electrical Resistivity | 75 | 51 microhm-in. | 24 | 1.30 microhm-m |
| Mean Coefficient of Thermal Expansion |
75-200 | 6.2 microinches/in.-°F | 24-93 | 11.2 x 10-6 m/m•K |
| 75-400 | 6.7 microinches/in.-°F | 24-204 | 12.0 x 10-6 m/m•K | |
| 75-600 | 7.1 microinches/in.-°F | 24-316 | 12.8 x 10-6 m/m•K | |
| 75-800 | 7.3 microinches/in.-°F | 24-427 | 13.2 x 10-6 m/m•K | |
| 75-1000 | 7.4 microinches/in.-°F | 24-538 | 13.4 x 10-6 m/m•K | |
| Thermal Conductivity | -270 | 50 Btu-in./ft.2 hr.-°F | -168 | 7.2 W/m•K |
| -100 | 60 Btu-in./ft.2 hr.-°F | -73 | 8.6 W/m•K | |
| 0 | 65 Btu-in./ft.2 hr.-°F | -18 | 9.4 W/m•K | |
| 100 | 71 Btu-in./ft.2 hr.-°F | 38 | 10.2 W/m•K | |
| 200 | 77 Btu-in./ft.2 hr.-°F | 93 | 11.1 W/m•K | |
| 400 | 90 Btu-in./ft.2 hr.-°F | 204 | 13.0 W/m•K | |
| 600 | 104 Btu-in./ft.2 hr.-°F | 316 | 15.0 W/m•K | |
| 800 | 117 Btu-in./ft.2 hr.-°F | 427 | 16.9 W/m•K | |
| 1000 | 132 Btu-in./ft.2 hr.-°F | 538 | 19.0 W/m•K | |
| Specific Heat (Calculated) |
Room | 0.102 Btu/lb.-°F | Room | 427 J/kg•K |
