Hastelloy Alloy C276 Buttweld Seamless Fittings|Hastelloy Alloy C276 Buttweld Welded Fittings|Hastelloy Alloy C276 Buttweld Fabricated Fittings|Hastelloy C276 N10276|2.4819 Hastelloy Alloy C276 Buttweld Fittings.
ASTM B366 Hastelloy Alloy C276 Buttweld Fittings| ASME SB366 Hastelloy Alloy C276 Buttweld Fittings Exporter|Hastelloy Alloy C276 Buttweld Fittings|Hastelloy Alloy C276 Buttweld Fittings Manufacturer In India.

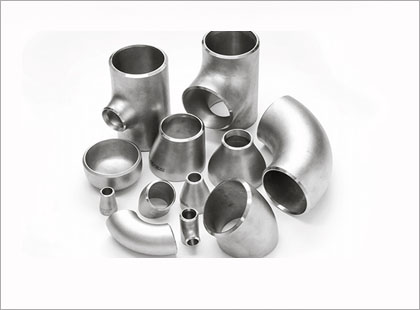

Apple Metals is one of the leading Manufacturer, Supplier and Exporter of Hastelloy C276 Butt Weld Pipe Fittings that are actually manufactured from High Quality of Standard Raw Materials and are designed as per with national and international standards. Alloy C276 Butt Weld Pipe Fittings is a nickel-molybdenum-chromium alloy with excellent corrosion resistance in severe environments. UNS N10276 Butt Weld Fittings is used in pollution control, chemical processing, pulp and paper production, and waste treatment. WNR 2.4819 Pipe Fittings is also one of the few materials that withstand the corrosive effects of wet chlorine gas, hypochlorite, and chlorine dioxide. We offer these Hastelloy C276 products in custom-made shapes and sizes as per the requirements given by our clients, and that too at an affordable and market leading prices
Our offered Alloy C276 Pipe Fittings (WNR 2.4819) is being created and composed in understanding by method for the universal nature of measures at our base office for to accomplish the most noteworthy sizes of value. We further ensure that our offered Alloy C276 Buttweld Fittings (WNR 2.4602) experiences different level of value testing and additionally it is given to our client as indicated by their essentials.
SPECIFICATION :
| Standards | ASTM, ASME ANSI B16.9, B16.28, MSS-SP-43. |
|---|---|
| Specifications | ASTM B366 / ASME SB366 |
| Size | 1/2"NB TO 12"NB IN |
| Schedule | Sch 5 TO Sch XXS. |
| Wall Thickness | from 2 to 40 mm. |
| Type | Seamless / Welded / Fabricated |
GRADE SPECIFICATION :
| Hastelloy | Tradename | UNS no. | Werkstoff No. |
| C276 | Hastelloy C276 | N10276 | 2.4819 |
CHEMICAL COMPOSITION :
| Element | Min | Max |
|---|---|---|
| Molybdenum | 15.0 | 17.0 |
| Chromium | 14.5 | 16.5 |
| Iron | 4.0 | 7.0 |
| Tungsten | 3.0 | 4.5 |
| Cobalt | -- | 2.50 |
| Manganese | -- | 2.5 |
| Carbon | -- | 1.0 |
| Vanadium | -- | .01 |
| Phosphorus | -- | 35 max |
| Sulfur | -- | .04 max |
| Silicon | -- | .03 max |
| Sulfur | -- | .08 max |
MECHANICAL PROPERTIES :
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
|---|---|---|---|
| Bar | 110.0 | 52.6 | 62 |
| Plate | 107.4 | 50.3 | 67 |
| Sheet | 115.5 | 54.6 | 60 |
| Tube & Pipe | 105.4 | 45.4 | 70 |
PHYSICAL PROPERTIES :
| Physical Property | Temp., °F | British Units | Temp., °C | Metric Units |
|---|---|---|---|---|
| Density | 72 | 0.321 lb/in.3 | 22 | 8.89 g/cm.3 |
| Melting Range | 2415-2500 | 1323-1371 | ||
| Electrical Resistivity | 75 | 51 microhm-in. | 24 | 1.30 microhm-m |
| Mean Coefficient of Thermal Expansion |
75-200 | 6.2 microinches/in.-°F | 24-93 | 11.2 x 10-6 m/m•K |
| 75-400 | 6.7 microinches/in.-°F | 24-204 | 12.0 x 10-6 m/m•K | |
| 75-600 | 7.1 microinches/in.-°F | 24-316 | 12.8 x 10-6 m/m•K | |
| 75-800 | 7.3 microinches/in.-°F | 24-427 | 13.2 x 10-6 m/m•K | |
| 75-1000 | 7.4 microinches/in.-°F | 24-538 | 13.4 x 10-6 m/m•K | |
| Thermal Conductivity | -270 | 50 Btu-in./ft.2 hr.-°F | -168 | 7.2 W/m•K |
| -100 | 60 Btu-in./ft.2 hr.-°F | -73 | 8.6 W/m•K | |
| 0 | 65 Btu-in./ft.2 hr.-°F | -18 | 9.4 W/m•K | |
| 100 | 71 Btu-in./ft.2 hr.-°F | 38 | 10.2 W/m•K | |
| 200 | 77 Btu-in./ft.2 hr.-°F | 93 | 11.1 W/m•K | |
| 400 | 90 Btu-in./ft.2 hr.-°F | 204 | 13.0 W/m•K | |
| 600 | 104 Btu-in./ft.2 hr.-°F | 316 | 15.0 W/m•K | |
| 800 | 117 Btu-in./ft.2 hr.-°F | 427 | 16.9 W/m•K | |
| 1000 | 132 Btu-in./ft.2 hr.-°F | 538 | 19.0 W/m•K | |
| Specific Heat (Calculated) |
Room | 0.102 Btu/lb.-°F | Room | 427 J/kg•K |
