Hastelloy C276 Seamless Round Pipes| Hastelloy C276 Seamless Square Pipes| Hastelloy C276 Seamless Rectangular Pipes| Hastelloy C276 Seamless Hydraulic Pipes|Hastelloy C276 N10276|Hastelloy Alloy C276 Seamless Pipes Supplier In India.
ASTM B 622 Hastelloy C276 Seamless Pipes|ASME SB 622 Hastelloy C276 Seamless Pipes Exporter|Hastelloy Alloy C276 Seamless Pipes|Hastelloy Alloy C276 Seamless Tubes|Hastelloy Alloy C276 Seamless Pipes Manufacturer In India.

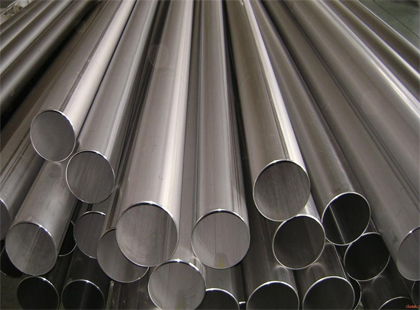

We at Apple Metals are producer, exporter and supplier of a subjective scope of Hastelloy C276 Seamless Pipes in Mumbai, India. we carry a full inventory of Hastelloy C276 Pipes and Tube and Supply Alloy C276 Pipes and Tube products is a a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments. This nickel alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process application in an as welded condition.
Hastelloy C276 Seamless Pipes has excellent resistance to pitting, stress corrosion cracking and to oxidizing atmospheres. In the mean time, our Hastelloy C276 werkstoff Nr. 2.4819 Seamless Pipes Manufacturer are accessible in various sizes, particular and thickness according to the customers' altered necessities. Apple Metals additionally offer the same in entirely sensible rates to our important clients.
SPECIFICATION :
| Standard | ASTM, ASME B 622, B 619, B 775, B 516, B 626 |
| Grade | Hastelloy C276 Seamless Pipes & Tubes: ASTM B 622, ASME SB 622 |
| Size : | 1/8" NB to 72" NB & 1mm OD to 1500mm OD |
| Thickness: | 0.3mm to 100mm, SCH 5, SCH 10, SCH 20, SCH 30, SCH 40,SCH STD, SCH 60, SCH 80,SCH XS, SCH 100, SCH 120 SCH 140 SCH 160,SCH XXS. | Types : | Seamless, Welded, ERW, Boiler tubes, Capillary, Fabricated, Corrugated, Conduit & Large Diameter Pipes. |
| Form : | Round pipes/tubes, Square pipes/tubes, Rectangle pipes/tubes, Coiled tubes, Hydraulic tubes, Ep pipes/ tubes, etc. |
| End : | Plain end, Beveled end, Threaded end & Conduit |
| Length | Single Random, Double Ranidom & Cut Length |
GRADE SPECIFICATION :
| Hastelloy | Tradename | UNS no. | Werkstoff No. |
| C276 | Hastelloy C276 | N10276 | 2.4819 |
CHEMICAL COMPOSITION :
| Element | Min | Max |
|---|---|---|
| Molybdenum | 15.0 | 17.0 |
| Chromium | 14.5 | 16.5 |
| Iron | 4.0 | 7.0 |
| Tungsten | 3.0 | 4.5 |
| Cobalt | -- | 2.50 |
| Manganese | -- | 2.5 |
| Carbon | -- | 1.0 |
| Vanadium | -- | .01 |
| Phosphorus | -- | 35 max |
| Sulfur | -- | .04 max |
| Silicon | -- | .03 max |
| Sulfur | -- | .08 max |
MECHANICAL PROPERTIES :
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
|---|---|---|---|
| Bar | 110.0 | 52.6 | 62 |
| Plate | 107.4 | 50.3 | 67 |
| Sheet | 115.5 | 54.6 | 60 |
| Tube & Pipe | 105.4 | 45.4 | 70 |
PHYSICAL PROPERTIES :
| Physical Property | Temp., °F | British Units | Temp., °C | Metric Units |
|---|---|---|---|---|
| Density | 72 | 0.321 lb/in.3 | 22 | 8.89 g/cm.3 |
| Melting Range | 2415-2500 | 1323-1371 | ||
| Electrical Resistivity | 75 | 51 microhm-in. | 24 | 1.30 microhm-m |
| Mean Coefficient of Thermal Expansion |
75-200 | 6.2 microinches/in.-°F | 24-93 | 11.2 x 10-6 m/m•K |
| 75-400 | 6.7 microinches/in.-°F | 24-204 | 12.0 x 10-6 m/m•K | |
| 75-600 | 7.1 microinches/in.-°F | 24-316 | 12.8 x 10-6 m/m•K | |
| 75-800 | 7.3 microinches/in.-°F | 24-427 | 13.2 x 10-6 m/m•K | |
| 75-1000 | 7.4 microinches/in.-°F | 24-538 | 13.4 x 10-6 m/m•K | |
| Thermal Conductivity | -270 | 50 Btu-in./ft.2 hr.-°F | -168 | 7.2 W/m•K |
| -100 | 60 Btu-in./ft.2 hr.-°F | -73 | 8.6 W/m•K | |
| 0 | 65 Btu-in./ft.2 hr.-°F | -18 | 9.4 W/m•K | |
| 100 | 71 Btu-in./ft.2 hr.-°F | 38 | 10.2 W/m•K | |
| 200 | 77 Btu-in./ft.2 hr.-°F | 93 | 11.1 W/m•K | |
| 400 | 90 Btu-in./ft.2 hr.-°F | 204 | 13.0 W/m•K | |
| 600 | 104 Btu-in./ft.2 hr.-°F | 316 | 15.0 W/m•K | |
| 800 | 117 Btu-in./ft.2 hr.-°F | 427 | 16.9 W/m•K | |
| 1000 | 132 Btu-in./ft.2 hr.-°F | 538 | 19.0 W/m•K | |
| Specific Heat (Calculated) |
Room | 0.102 Btu/lb.-°F | Room | 427 J/kg•K |
