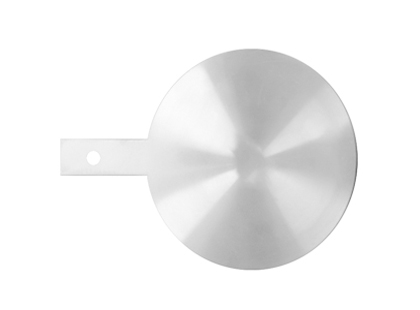

Spade Paddle Blanks Blinds Flanges

ANSI B16.5 Class 150 Spade Flanges, ANSI B16.5 Spade Flanges, Stockist of Stainless Steel Spade Flanges, ASME B16.5 Spade Flanges, Spade Blind Weld Flange, Global Supplier of Flat Faced Spade Flanges, Spade Flanges, Spade Flanges Dealer in India. Manufacturer of Spade Blind Forged Flanges, ASTM A182 SS Spade Flange.



Copper Nickel Spade Flanges Exporter, Inconel Spade Flanges, Stockholder Of DIN86029 PN10 Spade Blind, Best Price of Duplex Steel Spade Flanges, Hastelloy C22 Spade Flange, Class 300, 600, 900, 1500 Spade Flanges Wholesaler, Alloy 20 Spade Flanges Traders in India. Alloy Steel Spade Blind Plate Flanges, ASME B16.47 Series A and B Spade Flanges, Nickel Alloy 200 Spade Flange, Carbon Steel Spade Flange, Spade Flange Dimensions, MSS SP-44 Spade Flanges in Mumbai, India.

Apple Metals Is An ISO: 9001:2008 Certified Company.We Manufacturer Our Products By High Grade Material To Provide Good Quality Spade Flanges To Our Domestic And Overseas Customers. Flanges accomplish a Lot of admiration by our clients owing to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency products like Stainless Steel Spade Flanges, Carbon Steel Spade Flanges & Alloy Steel Spade Flanges. These products are used in various commercial, industrial and automobile industries. We manufacture ANSI B16.11 Forged Spade Flanges using high grade of raw material by implementing most ultra modern technology. These products are clients can avail from us at various sizes, shapes and design as per the requirements.We are one of the top Manufacturers and Suppliers of ASME B16.11 Spade Flanges in Mumbai, India.

Spade Paddle Blanks Blinds Flanges Manufacturer Exporter

Spade Flanges Manufacturer & Supplier In Mumbai


ANSI 16.5 Spade Flanges Dimensions

Class 150


 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W
1/2 45 16 126 3 32
3/4 54 21 131 3 32
1 64 27 136 3 32
73 42 145 6.4 32
83 48 145 6.4 32
2 102 61 155 6.4 32
107 73 170 6.4 32
3 133 89 170 6.4 32
159 102 202 9.7 38
4 172 114 202 9.7 38
5 194 141 225 9.7 38
6 219 168 225 12.7 38
8 276 219 267 12.7 38
10 337 273 322 15.7 44
12 406 324 357 19.1 44
14 448 356 378 19.1 44
16 511 406 410 22.4 44
18 546 457 427 25.4 51
20 603 508 455 28.4 51
24 714 610 512 31.8 51
 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W


Class 300

Class 600

 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W
1/2 51 16 129 6.4 32
3/4 64 21 136 6.4 32
1 70 27 139 6.4 32
79 37 150 9.7 32
92 43 150 9.7 32
2 108 55 158 9.7 32
127 67 177 12.7 32
3 146 83 177 12.7 32
159 96 211 15.7 38
4 191 108 211 15.7 38
5 238 135 248 19.1 38
6 264 162 248 22.4 38
8 318 212 288 28.4 38
10 397 265 352 35.1 44
12 454 315 381 41.1 44
14 489 346 398 44.5 44
16 562 397 435 50.8 44
18 610 448 459 53.8 51
20 679 497 493 63.5 51
24 787 597 547 73.2 51
 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W


Class 900

 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W
1/2 60 16 134 6.4 32
3/4 67 21 137 6.4 32
1 76 27 142 6.4 32
86 37 151 9.7 32
95 43 151 9.7 32
2 140 55 174 12.7 32
162 67 186 12.7 32
3 165 83 186 15.7 32
4 203 108 217 19.1 38
5 244 135 259 22.4 38
6 286 162 259 25.4 38
8 356 212 307 35.1 38
10 432 265 370 41.1 44
12 495 315 401 47.8 44
14 518 346 412 53.8 44
16 572 397 440 60.5 44
18 635 448 471 66.5 51
20 696 497 501 73.2 51
24 835 597 571 88.9 51
 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W

Standard Specification For Spade (Paddle Blanks/Blinds)


Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

BS : BS4504 , BS4504, BS1560, BS10

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)


Material & Grades of Spade (Paddle Blanks/Blinds) :

Stainless Steel Spade (Paddle Blanks/Blinds) :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel Spade (Paddle Blanks/Blinds) :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Spade (Paddle Blanks/Blinds) :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel Spade (Paddle Blanks/Blinds) : ASTM A350, LF2, LF3

Alloy Steel Spade (Paddle Blanks/Blinds) :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Spade (Paddle Blanks/Blinds) : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy Spade (Paddle Blanks/Blinds) :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)



ASME B16.5 Spade (Paddle Blanks/Blinds) Available Types

Spade Flange Spade Flanges
ANSI B16.5 Spade Flanges Spade Flange Dimensions
ASME B16.5 Spade Flanges ANSI B16.5 Class 150 Spade Flanges
Stainless Steel Spade Flanges Suppliers SS Spade Flange
Spade Plate Flanges Dealer ASME B16.47 Series A and B Spade Flanges Exporter
ANSI B16.5 class 150 Spade Flange Stockholder ANSI 150 Spade Flange Distributors
Carbon Steel Spade Flange High Quality Spade Flanges Manufacturer
ASTM A182 Stainless Steel Spade Flange Duplex Steel Spade Flange
Super Duplex Steel Spade Forged Flange Copper Nickel Spade Pipe Flanges
High Nickel Alloy Spade Flanges Hastelloy Flat Faced Spade Flanges Stockist
Titanium ASME B16.47 Series A and B Spade Flanges Inconel Spade Flanges


ANSI B16.5 Spade Flange Application

  1. Industrial Boilers
  2. Power Plants
  3. Nuclear Plants
  4. Oil & Gas Industry
  5. Refineries
  6. Ship Building
  7. Heat Exchangers
  8. Condensers
  9. Paper & Pulp
  10. Marine Applications
  11. Nuclear Power
  12. Fossil Fuel Power Plants
