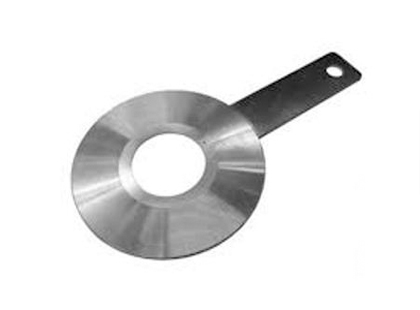

Ring Spacer Paddle Flanges

ANSI B16.5 Class 150 Ring Spacer Flanges, ANSI B16.5 Ring Spacer Flanges, Stockist of Stainless Steel Ring Spacer Flanges, ASME B16.5 Ring Spacer Flanges, Spectacle Blind Weld Flange, Global Supplier of Flat Faced Ring Spacer Flanges, Ring Spacer Flanges, Ring Spacer Flanges Dealer in India. Manufacturer of Spectacle Blind Forged Flanges, Carbon Steel Spectacle Blind Flange, Spectacle Blind Flange Dimensions, MSS SP-44 Ring Spacer Flanges in Mumbai, India.



Copper Nickel Ring Spacer Flanges Exporter, Inconel Ring Spacer Flanges, Stockholder Of DIN86029 PN10 Spectacle Blind, Best Price of Duplex Steel Ring Spacer Flanges, Hastelloy C22 Spectacle Blind Flange, Class 300, 600, 900, 1500 Ring Spacer Flanges Wholesaler, Alloy 20 Ring Spacer Flanges Traders in India, ASTM A182 SS Spectacle Blind Flange, Alloy Steel Spectacle Blind Plate Flanges, ASME B16.47 Series A and B Ring Spacer Flanges, Nickel Alloy 200 Spectacle Blind Flange.

Apple Metals Is An ISO: 9001:2008 Certified Company.We Manufacturer Our Products By High Grade Material To Provide Good Quality Ring Spacer Flanges To Our Domestic And Overseas Customers. Flanges accomplish a Lot of admiration by our clients owing to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency products like Stainless Steel Ring Spacer Flanges, Carbon Steel Ring Spacer Flanges & Alloy Steel Ring Spacer Flanges. These products are used in various commercial, industrial and automobile industries. We manufacture ANSI B16.11 Forged Ring Spacer Flanges using high grade of raw material by implementing most ultra modern technology. These products are clients can avail from us at various sizes, shapes and design as per the requirements.We are one of the top Manufacturers and Suppliers of ASME B16.11 Ring Spacer Flanges in Mumbai, India.

Ring Spacers Paddle Flanges Manufacturer Exporter

Ring Spacers Paddle Flanges Manufacturer & Supplier In Mumbai



ANSI 16.5 Ring Spacer Flanges Dimensions

Class 150

 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W
1/2 45 16 126 3 32
3/4 54 21 131 3 32
1 64 27 136 3 32
73 42 145 6.4 32
83 48 145 6.4 32
2 102 61 155 6.4 32
107 73 170 6.4 32
3 133 89 170 6.4 32
159 102 202 9.7 38
4 172 114 202 9.7 38
5 194 141 225 9.7 38
6 219 168 225 12.7 38
8 276 219 267 12.7 38
10 337 273 322 15.7 44
12 406 324 357 19.1 44
14 448 356 378 19.1 44
16 511 406 410 22.4 44
18 546 457 427 25.4 51
20 603 508 455 28.4 51
24 714 610 512 31.8 51
 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W


Class 300

 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W
1/2 51 16 129 6.4 32
3/4 64 21 136 6.4 32
1 70 27 139 6.4 32
79 42 150 6.4 32
92 48 150 6.4 32
2 108 61 158 9.7 32
127 73 177 9.7 32
3 146 89 177 9.7 32
162 102 205 12.7 38
4 178 114 205 12.7 38
5 213 141 240 15.7 38
6 248 168 240 15.7 38
8 305 219 281 22.4 38
10 359 273 333 25.4 44
12 419 324 363 28.4 44
14 483 356 395 31.8 44
16 536 406 422 38.1 44
18 594 457 450 41.1 51
20 651 508 480 44.5 51
24 772 610 540 50.8 51
 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W


Class 600

 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W
1/2 51 16 129 6.4 32
3/4 64 21 136 6.4 32
1 70 27 139 6.4 32
79 37 150 9.7 32
92 43 150 9.7 32
2 108 55 158 9.7 32
127 67 177 12.7 32
3 146 83 177 12.7 32
159 96 211 15.7 38
4 191 108 211 15.7 38
5 238 135 248 19.1 38
6 264 162 248 22.4 38
8 318 212 288 28.4 38
10 397 265 352 35.1 44
12 454 315 381 41.1 44
14 489 346 398 44.5 44
16 562 397 435 50.8 44
18 610 448 459 53.8 51
20 679 497 493 63.5 51
24 787 597 547 73.2 51
 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W


Class 900

 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W
1/2 60 16 134 6.4 32
3/4 67 21 137 6.4 32
1 76 27 142 6.4 32
86 37 151 9.7 32
95 43 151 9.7 32
2 140 55 174 12.7 32
162 67 186 12.7 32
3 165 83 186 15.7 32
4 203 108 217 19.1 38
5 244 135 259 22.4 38
6 286 162 259 25.4 38
8 356 212 307 35.1 38
10 432 265 370 41.1 44
12 495 315 401 47.8 44
14 518 346 412 53.8 44
16 572 397 440 60.5 44
18 635 448 471 66.5 51
20 696 497 501 73.2 51
24 835 597 571 88.9 51
 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W


Class 1500

 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W
1/2 61 16 135 6.4 32
3/4 67 21 137 9.7 32
1 76 27 142 9.7 32
86 35 151 9.7 32
95 41 151 12.7 32
2 140 53 174 12.7 32
162 63 190 15.7 32
3 172 78 190 19.1 32
4 206 102 219 22.4 38
5 251 128 256 28.4 38
6 279 154 256 35.1 38
8 349 203 303 41.1 38
10 432 255 370 50.8 44
12 518 303 412 60.5 44
14 575 333 442 66.5 44
16 638 381 472 76.2 44
18 702 429 504 85.9 51
20 752 478 530 95.3 51
24 899 575 603 111.3 51
 NPS  Outside Ø
A
Inside Ø
B
Center to End
C
Thickness
t
Handle Width
W

Standard Specification For Ring Spacer Flanges


Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

BS : BS4504 , BS4504, BS1560, BS10

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)



Material & Grades of Ring Spacer Flanges (BLRF) :

Stainless Steel Ring Spacer Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel Ring Spacer Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Ring Spacer Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel Ring Spacer Flanges  : ASTM A350, LF2, LF3

Alloy Steel Ring Spacer Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Ring Spacer Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy Ring Spacer Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)



ASME B16.5 Raised Faced Ring Spacer Flanges Available Types

Blind Raised Face Flange Raised Faced Ring Spacer Flanges
ANSI B16.5 Ring Spacer Flanges Blind Flange Dimensions
ASME B16.5 BLRF Flanges ANSI B16.5 Class 150 Ring Spacer Flanges
Stainless Steel Ring Spacer Flanges Suppliers SS Blind Flange
Blind Plate Flanges Dealer ASME B16.47 Series A and B BLRF Flanges Exporter
ANSI B16.5 class 150 BLRF Flange Stockholder ANSI 150 Blind Flange Distributors
Carbon Steel Blind Flange High Quality BLRF Flanges Manufacturer
ASTM A182 Stainless Steel BLRF Flange Duplex Steel Blind Flange
Super Duplex Steel Blind Forged Flange Copper Nickel Blind Pipe Flanges
High Nickel Alloy BLRF Flanges Hastelloy Flat Faced Ring Spacer Flanges Stockist
Titanium ASME B16.47 Series A and B BLRF Flanges Inconel Ring Spacer Flanges

ANSI B16.5 Ring Spacer Flange Application

  1. Industrial Boilers
  2. Power Plants
  3. Nuclear Plants
  4. Oil & Gas Industry
  5. Refineries
  6. Ship Building
  7. Heat Exchangers
  8. Condensers
  9. Paper & Pulp
  10. Marine Applications
  11. Nuclear Power
  12. Fossil Fuel Power Plants
