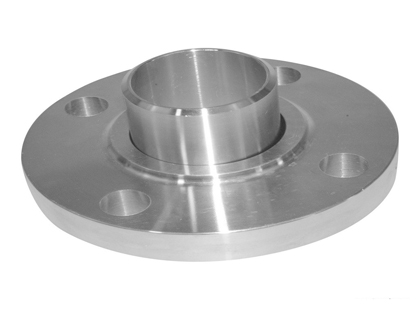

Lap Joint Flanges

ASME B16.5 Lap Joint Flanges, Stockist of Stainless Steel Lap Joint Flanges, Lapped Joint Weld Flange, Global Supplier of Flat Faced Lap Joint Flanges, Lap Joint Flanges, ANSI B16.5 Class 150 Lap Joint Flanges, Lap Joint Flanges Dealer in India, ANSI B16.5 Lapped Joint Flanges. Nickel Alloy 200 Lap Joint Flange, Carbon Steel Lap Joint Flange, Lap Joint Flange Dimensions,MSS SP-44 Lap Joint Flanges in Mumbai, India.



Copper Nickel Lap Joint Flanges Exporter, Inconel Lap Joint Flanges, Stockholder Of DIN86029 PN10 Lap Joint Flange, Best Price of Duplex Steel Lap Joint Flanges, Hastelloy C22 Lapped Joint Flange, Class 300, 600, 900, 1500 Lap Joint Flanges Wholesaler, Alloy 20 Lap Joint Flanges Traders in India, Alloy Steel Lapped Joint Plate Flanges, ASME B16.47 Series A and B Lap Joint Flanges, Manufacturer of Lap Joint Forged Flanges, ASTM A182 SS Lap Joint Flange.

Apple Metals Is An ISO: 9001:2008 Certified Company.We Manufacturer Our Products By High Grade Material To Provide Good Quality Lap Joint Flanges To Our Domestic And Overseas Customers. Flanges accomplish a Lot of admiration by our clients owing to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency products like Stainless Steel Lap Joint Flanges, Carbon Steel Lap Joint Flanges & Alloy Steel Lap Joint Flanges. These products are used in various commercial, industrial and automobile industries. We manufacture ANSI B16.11 Forged Lap Joint Flanges using high grade of raw material by implementing most ultra modern technology. These products are clients can avail from us at various sizes, shapes and design as per the requirements.We are one of the top Manufacturers and Suppliers of ASME B16.11 Lap Joint Flanges in Mumbai, India.

Lap Joint Flanges Manufacturer Exporter

Lap Joint Flanges Manufacturer & Supplier In Mumbai


ANSI 16.5 Lap Joint Flanges Dimensions

Nominal Bore Dia.
(D)
Thick.
(E)
Dia.
(B)
Dia.
(A)
Height
(H)
Nbr Holes Dia.
(C)
1/2" 90 11.2 30 22.9 16 4 15.87 60.3
3/4" 100 12.7 38 28.2 16 4 15.87 69.9
1" 110 14.3 49 34.9 17 4 15.87 79.4
1 1/4" 115 15.9 59 43.7 21 4 15.87 88.9
1 1/2" 125 17.5 65 50.0 22 4 15.87 98.4
2" 150 20.7 78 62.5 25 4 19.05 120.7
2 1/2" 180 22.3 90 75.4 29 4 19.05 139.7
3" 190 23.9 108 91.4 30 4 19.05 152.4
3 1/2" 215 23.9 122 104.1 32 8 19.05 177.8
4" 230 23.9 135 116.8 33 8 19.05 190.5
5" 255 23.9 164 144.4 36 8 22.22 215.9
6" 280 25.4 192 171.4 40 8 22.22 241.3
8" 345 28.6 246 222.2 44 8 22.22 298.5
10" 405 30.2 305 277.4 49 12 25.40 362.0
12" 485 31.8 365 328.2 56 12 25.40 431.8
14" 535 35.0 400 360.2 79 12 28.57 476.3
16" 595 36.6 457 411.2 87 16 28.57 539.8
18" 635 39.7 505 462.3 97 16 31.75 577.9
20" 700 42.9 559 514.4 103 20 31.75 635.0
24" 815 47.7 663 616.0 111 20 34.92 749.3

 The dimensions are in millimeters
Source : ASME B16.5


Nominal Bore Dia.
(D)
Thick.
(E)
Dia.
(B)
Dia.
(A)
Height
(H)
Nbr Holes Dia.
(C)
1/2" 95 14.3 38 22.9 22 4 15.87 66.7
3/4" 115 15.9 48 28.2 25 4 19.05 82.6
1" 125 17.5 54 34.9 27 4 19.05 88.9
1 1/4" 135 19.1 64 43.7 27 4 19.05 98.4
1 1/2" 155 20.7 70 50.0 30 4 22.22 114.3
2" 165 22.3 84 62.5 33 8 19.05 127.0
2 1/2" 190 25.4 100 75.4 38 8 22.22 149.2
3" 210 28.6 117 91.4 43 8 22.22 168.3
3 1/2" 230 30.2 133 104.1 44 8 22.22 184.2
4" 255 31.8 146 116.8 48 8 22.22 200.0
5" 280 35.0 178 144.4 51 8 22.22 235.0
6" 320 36.6 206 171.4 52 12 22.22 269.9
8" 380 41.3 260 222.2 62 12 25.40 330.2
10" 445 47.7 321 277.4 95 16 28.57 387.4
12" 520 50.8 375 328.2 102 16 31.75 450.8
14" 585 54.0 425 360.2 111 20 31.75 514.4
16" 650 57.2 483 411.2 121 20 34.29 571.5
18" 710 60.4 533 462.3 130 24 34.29 628.6
20" 775 63.5 587 514.4 140 24 34.29 685.8
24" 915 69.9 702 616.0 152 24 41.27 812.8

The dimensions are in millimeters
Source : ASME B16.5



Nominal Bore Dia.
(D)
Thick.
(E)
Dia.
(B)
Dia.
(A)
Height
(H)
Nbr Holes Dia.
(C)
1/2" 95 14.3 38 23.6 22 4 15.87 66.7
3/4" 115 15.9 48 29.0 25 4 19.05 82.6
1" 125 17.5 54 35.8 27 4 19.05 88.9
1 1/4" 135 20.7 64 44.4 29 4 19.05 98.4
1 1/2" 155 22.3 70 50.6 32 4 22.22 114.3
2" 165 25.4 84 63.5 37 8 19.05 127.0
2 1/2" 190 28.6 100 76.2 41 8 22.22 149.2
3" 210 31.8 117 92.2 46 8 22.22 168.3
3 1/2" 230 35.0 133 104.9 49 8 25.40 184.2
4" 275 38.1 152 117.6 54 8 25.40 215.9
5" 330 44.5 189 144.4 60 8 28.57 266.7
6" 355 47.7 222 171.4 67 12 28.57 292.1
8" 420 55.6 273 222.2 76 12 31.75 349.2
10" 510 63.5 343 276.2 111 16 34.92 431.8
12" 560 66.7 400 328.6 117 20 34.92 489.0
14" 605 69.9 432 360.4 127 20 38.10 527.0
16" 685 76.2 495 411.2 140 20 41.27 603.2
18" 745 82.6 546 462.0 152 20 44.45 6654.0
20" 815 88.9 610 512.8 165 24 44.45 723.9
24" 940 101.6 718 614.4 184 24 50.80 838.2

Standard Specification For Lap Joint Flanges


Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

BS : BS4504 , BS4504, BS1560, BS10

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)


Material & Grades of Lap Joint Flanges :

Stainless Steel Lap Joint Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel Lap Joint Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Lap Joint Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel Lap Joint Flanges : ASTM A350, LF2, LF3

Alloy Steel Lap Joint Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Lap Joint Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy Lap Joint Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)


ASME B16.5 Lap Joint Flanges Available Types

Lap Joint Flange Lapped Joint Flanges
ANSI B16.5 Lap Joint Flanges Lap Joint Flange Dimensions
ASME B16.5 Lapped Joint Flanges ANSI B16.5 Class 150 Lap Joint Flanges
Stainless Steel Lap Joint Flanges Suppliers SS Lap Joint Flange
Lapped Joint Plate Flanges Dealer ASME B16.47 Series A and B Lap Joint Flanges Exporter
ANSI B16.5 class 150 Lap Joint Flange Stockholder ANSI 150 Lap Joint Flange Distributors
Carbon Steel Lap Joint Flange High Quality Lap Joint Flanges Manufacturer
ASTM A182 Stainless Steel Lap Joint Flange Duplex Steel Lapped Joint Flange
Super Duplex Steel Lap Joint Forged Flange Copper Nickel Lap Joint Pipe Flanges
High Nickel Alloy Lapped Joint Flanges Hastelloy Flat Faced Lap Joint Flanges Stockist
Titanium ASME B16.47 Series A and B Lap Joint Flanges Inconel Lap Joint Flanges


ANSI B16.5 Lap Joint Flange Application

  1. Industrial Boilers
  2. Power Plants
  3. Nuclear Plants
  4. Oil & Gas Industry
  5. Refineries
  6. Ship Building
  7. Heat Exchangers
  8. Condensers
  9. Paper & Pulp
  10. Marine Applications
  11. Nuclear Power
  12. Fossil Fuel Power Plants
