Aluminium Alloy 2024 Sheets | Aluminium Alloy 2024 Plates| Aluminium Alloy 2024 Square's |2024-T3 Bare Aluminium Sheet | 2024-T351 Aluminium Plate |2024-0 AL clad Aluminium Sheet|Aluminium Alloy 2024 Sheets & Plates Stockist In Mumbai| Aluminium Alloy 2024 Sheets Exporter.
ALUMINIUM ALLOY 2024 SHEETS PLATES|Aluminium Alloy 2024 Sheets | Aluminium Alloy 2024 Plates | 2024-0 Bare Aluminium Sheet |2024-T3 AL clad MRS Quality Aluminium Sheet Exporter In India.

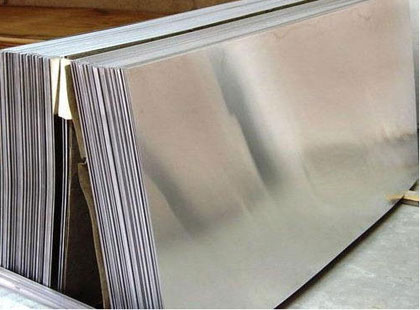

Apple Metals We are exporter of Alloy 2024 plate products, which are used in fuselage structural, wing tension members, shear webs and ribs and structural areas where stiffness, fatigue performance and good strength are required 2024 Aluminium Plates and Sheets are made by surpassing aluminium between moves underneath weight, it gets the chance to be more slim and more in the moving course. With its relatively good fatigue resistance, especially in thick plate forms, aluminium alloy 2024 continues to be specified for many aerospace structural applications
The Aluminum Alloy 2024 Plates and Sheets advance itself just to resistance welding. These Plates and Sheets have awesome workability yet changes in tempers. These Aluminum Alloy 2024 Plates and Sheets which are open in different combination of sizes and thickness furthermore at business sector driven expenses.
SPECIFICATIONS OF ALUMINIUM ALLOY 2024 SHEETS PLATES :
| Standard Trimmed : | 915, 1220, 1400 and 1500 mm |
| Standard Untrimmed : | 1270, 1540 mm |
| Grades : | Aluminium Alloy 2024 |
| Width Range : | 0.3mm to 150mm |
| Thickness : | Soft, Hard, Half Hard, Spring Hard, etc. |
| Finish : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form : | Coils, Foils, Rolls, Plain Sheet, Shim Sheets, Perforated Sheets, Chequered Plates, Strips, Flats, Blank (Circle), Ring (Flange) etc. |
| Finish: | Hot rolled plates (HR), Cold rolled sheets (CR), 2B, 2D, 2BB, BA, NO8, SATIN (MET with Plastic coated). |
| other Services: | Heat treatment, Annealing, Pickling, Polish, Electroplating, Anodizing, Rolling, Cutting, Forging, etc. |
GRADE SPECIFICATIONS OF ALUMINIUM ALLOY 2024 SHEETS PLATES :
| Aluminium Alloy | UNS no. | Werkshofft No. |
| 2024 | A92024 | 3.1354 |
CHEMICAL COMPOSITION OF ALUMINIUM ALLOY 2024 SHEETS PLATES :
Silicon: |
0.5 |
Iron : |
0.5 |
Copper : |
3.8-4.9 |
Manganese : |
030.-0.9 |
Magnesium : |
1.2-1.8 |
Chromium: |
0.1 |
Zinc: |
0.25 |
MECHANICAL PROPERTIES OF ALUMINIUM ALLOY 2024 SHEETS PLATES :
| Mechanical Property | Value |
| Proof Stress | 395 Min MPa |
| Tensile Strength | 450 Min MPa |
| Elongation A50 mm | 7 Min % |
| Hardness Brinell | 135 HB |
PHYSICAL PROPERTIES OF ALUMINIUM ALLOY 2024 SHEETS PLATES :
| Physical Property | Value |
| Density | 2.82 g/cm³ |
| Modulus of Elasticity | 71 GPa |
| Electrical Resistivity | 0.045 x10^-6 Ω .m |
| Thermal Conductivity | 138 W/m.K |
| Thermal Expansion | 23 x10^-6 /K |
| Melting Point | 535 °C |
